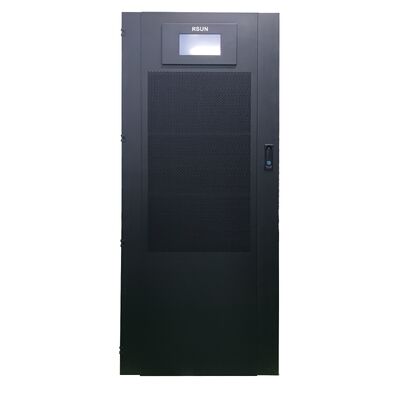

120KVA 3 Phase UPS Online High Frequency UPS DSP Touch Screen UPS Parallel
| MOQ: | 1 |
| Price: | Negotiation |
| Standard Packaging: | Wooden box |
| Delivery Period: | 25 working days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 10,000PCS per month |
120KVA 3 Phase UPS
,Online 3 Phase UPS
,120KVA Online High Frequency UPS
120 Kva UPS 3 Phase Ups High Frequency Online UPS 120KVA DSP Touch Screen UPS Parallel
• DSP-based control for fast, reliable performance
• High input power factor (up to 0.99) with PFC
• Configurable battery setup (±16 - 20 units)
• Parallel-ready (up to 4 units) with shared battery support
• Smart multi-stage charging system
• Dual display: LCD + LED for intuitive monitoring
• Integrated maintenance bypass
• Supports unbalanced 3-phase loads
• RS-232 standard; SNMP optional
• EPO (Emergency Power Off) functionality
DESCRIPTIONS:
The RSUN DT33 Series is a high-capacity, online double-conversion UPS with three-phase input/output, built to support critical infrastructure. With advanced PFC technology, it delivers up to 0.99 input power factor, reducing total harmonic distortion and improving grid efficiency.
Designed with high power density, it conserves valuable floor space while maintaining robust performance. Intelligent DSP-based control enhances reliability, enabling real-time system monitoring, diagnostics, and fault tolerance.
The DT33 ensures uninterrupted, high-quality power delivery, effectively mitigating sags, surges, transients, harmonics, and frequency instability, ideal for data centers, telecom, industrial, and other mission-critical environments.
SPECIFICATIONS:
| Model | DT33-10K | DT33-20K | DT33-30K | DT33-40K | DT33-50K | DT33-60K | DT33-80K | DT33-100K | DT33-120K | DT33-160K | DT33-200K | ||
| Capacity | 10kVA | 20kVA | 30kVA | 40kVA | 50kVA | 60kVA | 80kVA | 100kVA | 120kVA | 160kVA | 200kVA | ||
| Input | |||||||||||||
| Rated Voltage | 380Vac (3 phase+N) | ||||||||||||
| Voltage Range | 304Vac ～ 478Vac (line voltage) full load； 304Vac ～ 228Vac (line voltage) load derated linearly from100% to 80% | ||||||||||||
| Frequency Range | 40Hz ~ 70 Hz | ||||||||||||
| Power Factor | ≥ 0.99@100% load；≥ 0.98@50% load | ||||||||||||
| THDi | ＜3％ (100% linear load) ; ＜5％ (100%nonlinear load) | ||||||||||||
| Output | |||||||||||||
| Output Voltage | 380/400/415Vac (3phase+N)； | ||||||||||||
| Voltage Accuracy | ±1％@balanced load；±5％@unbalanced | ||||||||||||
| THDu | ≤2％ (100% linear load)；≤4％ (nonlinear load) | ||||||||||||
| Power Factor | 0.9 (1 optional) | ||||||||||||
| Frequency Range | ±2Hz(settable)；±0.5Hz,±1Hz,±3Hz(settable) (Synchronizing Range) | ||||||||||||
| Frequency Range | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz (Battery Mode) | ||||||||||||
| Overload | ＜ 105％, long run; ＜ 110％, 60 min; 110～125％ rated load, load 10 min; ＞125～150％ rated load, load1 min; ＞150％, 200ms | ||||||||||||
| Crest Factor | 3:1 (maximum) | ||||||||||||
| Switching Time | 0 ms (Main power Battery) | ||||||||||||
| 1 ms (phase lock failure, <2ms interrupt occurs) (Inverter Bypass) | |||||||||||||
| < 2 ms (Inverter ECO) | |||||||||||||
| Efficiency | |||||||||||||
| Inverter Mode | ≥95% | ||||||||||||
| ECO Mode | ≥99% | ||||||||||||
| Battery | |||||||||||||
| Number | Long backup | 32; 30 ~ 44(±15~±22)(settable) | |||||||||||
| Standard backup | (30~60)x7AH/9AH | (60~80)x7AH/9AH | NA | ||||||||||
| Charging Current | Capacity* 15%/N/12(N=±15-22) | ||||||||||||
| Charging Voltage | ± 13.65Vdc * N ± 1%(N=±15-22) | ||||||||||||
| Physical | |||||||||||||
| Long backup | Size (mm) | 280 x 685 x 725 | 425 x 780 x 1200 | 600 x 800 x 1600 | 600 x 960 x 1600 |
600 x 1010 x 2000 |
|||||||
| Net Weight(kg) | 45 | 108 | 230 | 310 | 360 | 460 | |||||||
| Standard backup | Size WxDxH(mm) | 400 x 685 x 1000 | 425 x 780 x 1580 | NA | |||||||||
| Net Weight(kg) | 62 (w/o battery) | 135 (w/o battery) | NA | ||||||||||
| Environment | |||||||||||||
| Working Temperature | 0 ~ 40°C battery life will be shorten when temperature > 25°C | ||||||||||||
| Relative Humidity | 0~95% no condensation | ||||||||||||
| Altitude | 1000 meters no derate, ＞ 1000 meters derating 1% for every 100 meters rise | ||||||||||||
| Noise | ≤ 60dB (A)@ 1 meter | ||||||||||||
| Management | |||||||||||||
| Intelligent RS232/RS485 | Support Windows® 2000/2003/XP/Vista/2008,Windows® 7/8/10,Linux and MAC | ||||||||||||
| Optional | SNMP / Dry contact | ||||||||||||
FAQ - Frequently Asked Questions
Q1: What is your minimum order quantity (MOQ) for UPS systems?
A: We have a flexible MOQ policy, sample orders start from just 1 unit for evaluation or testing purposes.
Q2: Can I request a sample before placing a bulk order?
A: Yes, we support sample orders. Mixed model samples are also available for testing compatibility and performance.
Q3: What is the estimated lead time?
A: Sample units typically ship within 5 - 7 days. Mass production orders require around 25 business days, depending on order volume and configuration.
Q4: What are your shipping methods and delivery times?
A: We offer delivery via sea freight, air cargo, and express couriers such as DHL, FedEx, or others per your preference. Delivery time depends on your region and shipping option.
Q5: How do I place an order?
A: Simply share your technical requirements or application scenario. We’ll recommend suitable models and provide a quote. Once samples are approved and deposit is received, production will begin.
Q6: Is it possible to add my company logo to the UPS?
A: Definitely. We support OEM branding, just send your logo and requirements before production starts.
Q7: Do your UPS products come with a warranty?
A: Yes, all our UPS systems are backed by a standard 3-year warranty, covering manufacturing defects and hardware reliability.
