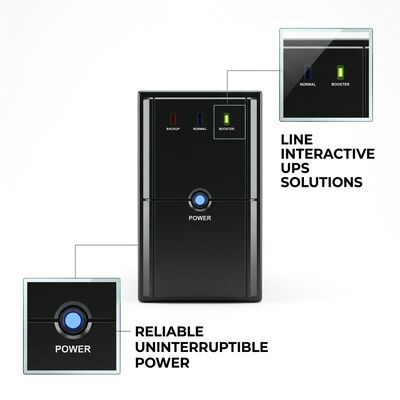

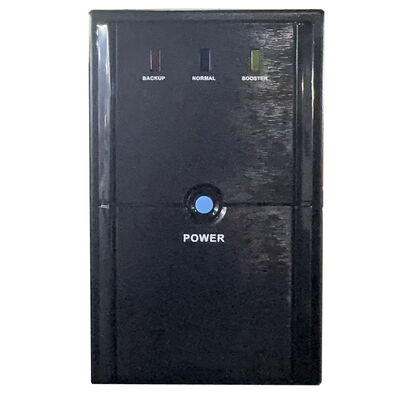

1250VA Line Interactive UPS Uninterruptible Power Supply Units Modified Sine Wave LED
| MOQ: | 100PCS |
| Price: | Negotiation |
| Standard Packaging: | Color box |
| Delivery Period: | 25 working days after payment |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 200000 per month |
1250VA Line Interactive UPS Uninterruptible Power Supply Units Modified Sine Wave LED, USB RJ45 RJ11, 220V UPS, 110V UPS
The SV Series is engineered to deliver smart, reliable power protection in a refined and compact enclosure. Powered by precision SMD components and a sophisticated microprocessor control system, it actively stabilizes voltage and safeguards connected equipment against power irregularities. Designed for desktops, network devices, and POS systems, the SV Series ensures uninterrupted, clean energy in both home and professional environments, combining modern aesthetics with dependable performance.
-
Power ratings from 500VA to 3000VA
-
Microprocessor-driven control for stable performance
-
Automatic restart after utility power recovery
-
Cold start support without mains input
-
Low-noise operation for quiet environments
-
Battery charging available in standby mode
-
Built-in safeguards against low voltage, overload, short circuit, and more
-
Wide input tolerance: 145 - 290V / 85 - 150V
-
Multiple interfaces: USB, RS232, RJ45 / RJ11
SPECIFICATIONS:
| Model NO. | SV-500 | SV-650 | SV-850 | SV-1000 | SV-1200 | SV-1500 | SV-2000 | SV-3000 | ||
| Capacity | 500VA/300W | 650VA/390W | 850VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W | 3000VA/1800W | ||
| AVR | Optional | 3 steps of AVR, CPU controlled | Yes | |||||||
| INPUT | ||||||||||
| Input voltage range | 175~265±5Vac | 220/230/240V:145~290Vac±5Vac | 175~275Vac | |||||||
| 110V/120V: 85~150Vac±5Vac | ||||||||||
| Input frequency range | 50Hz / 60Hz (Auto sensing) | |||||||||
| OUTPUT | ||||||||||
| Output voltage range | 175~265±5Vac | 220/230/240V:200~255Vac | 220/230/240V:198~242Vac | |||||||
| 110V/120V: 102~132Vac | ||||||||||
| Output frequency (DC mode) | 70Hz | 50±0.5Hz / 60±0.5Hz | ||||||||
| Wave form | PWM (DC Mode) | |||||||||
| Transfer time | Typical 2~6ms, Max.10ms. | |||||||||
| BATTERY | ||||||||||
| QTY & capacity of battery | 1pc*12V4.5Ah | 1 pc*12V7Ah | 1 pc*12V9Ah | 2 pcs*12V7Ah | 2 pcs*12V7Ah | 2 pcs*12V9Ah | 2/4pcs*12V9Ah | 4pcs*12V9Ah (24VDC) | ||
| Charging period | 4~6 hours recover to 90% capacity | |||||||||
| PROTECTION & FUNCTION | ||||||||||
| PROTECTION | 1. Battery low voltage protection 2. Overload protection 3. Short circuit protection |
|||||||||
| FUNCTION | 1. Auto re-starts when AC recovers 2. Silence setup 3. Automatic charging (offline charging) |
|||||||||
| MANAGEMENT | ||||||||||
| RJ45/11 & USB | No, can add | Optional, refer to customers' requires. | ||||||||
| PHYSICAL | ||||||||||
| Unit dimension (mm) | 260*85*140 | 305*85*140 | 324*100*153 | 350*120*188 | 340*110*265 | |||||
| Pcs in one master carton | 4 | 2 | 1 | |||||||
| Gross weight (1pc, kg) | 4.2 | 4.9 | 6.2 | 10 | 10.8 | 12.6 | 18.5 | 20.5 | ||
| Net weight (1pc, kg) | 4 | 4.6 | 5.8 | 9.6 | 10.2 | 12 | 18 | 20 | ||
Universal Power Compatibility:
Engineered for seamless global deployment, this UPS accommodates a broad range of international plug and outlet standards, including IEC C13/C14, Schuko (Type F), Universal, NEMA A/B, Italian Type L, UK Type G, French Type E, Brazilian Type N, South African Type M, Australian Type I, Swiss Type J, and Indian Type D. Its adaptable power design ensures consistent and dependable operation across varying grid conditions, making it a reliable choice for residential, commercial, and light industrial applications worldwide.
APPLICATIONS:
-
Home Use: Protects PCs, multimedia systems, routers, and smart security devices from power disruptions.
-
Office & IT: Maintains uptime for servers, network infrastructure, VoIP systems, storage units, and access control.
-
Business & Retail: Delivers dependable backup for POS systems, self-service kiosks, office terminals, and financial hardware.
Whether in a home workspace or a professional setting, this UPS delivers stable, hassle-free power protection wherever continuity matters.
1. Is it possible to receive samples before bulk purchasing?
RSUN POWER: Certainly. We recommend sample evaluation and allow multiple models to be combined, so you can fully assess performance and build confidence before mass ordering.
2. Do you require a minimum order quantity?
RSUN POWER: There is no MOQ restriction. From trial units to large-volume purchases, we support orders of any size.
3. Are customization and private labeling available?
RSUN POWER: Yes. We provide comprehensive OEM/ODM solutions, including brand customization, packaging design, and tailored hardware or firmware adjustments.
4. What is the standard order workflow?
RSUN POWER:
-
Share your technical or commercial requirements
-
Receive a customized quotation
-
Confirm samples and place the initial payment
-
Production starts, with progress updates provided until shipment
5. How long does production take?
RSUN POWER: Sample orders are typically completed within 5 - 7 working days. Mass production generally requires around 25 working days after confirmation and deposit.
6. What delivery methods do you offer?
RSUN POWER: We arrange worldwide shipping via express couriers such as DHL and FedEx, as well as cost-effective sea freight options, based on your destination and preference.
7. Is warranty coverage included?
RSUN POWER: Yes. All UPS products are covered by a warranty period ranging from 1 to 3 years, depending on the model, to ensure long-term reliability.
